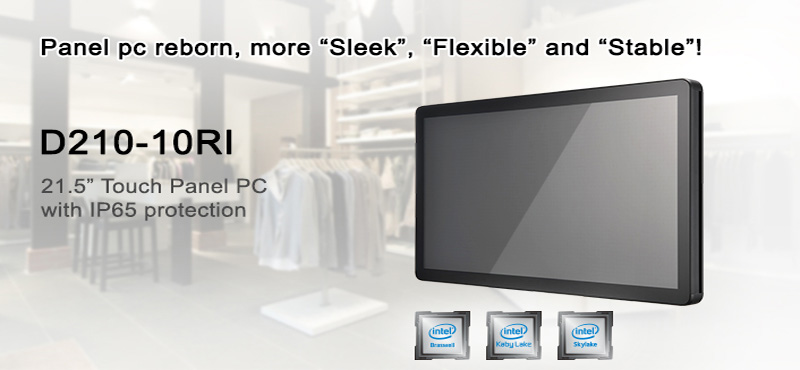

  • D210-10RI is a 21.5" ultra-thin wide-screen fanless Panel PC featuring both Intel Braswell N3160 quad-core processor / Kabylake ULV processor. The distinct aluminum extrusion frame with matte black or silver finish gives the system an understated luxury and elegant look. The series also featuring a bright TFT-LCD with LED backlight display and true flat 10-point projective capacitive multi-touch front panel that's IP65 compliant, along with optional universal snap-in peripherals (MSR, Smart card reader, NFC / RFID reader, barcode scanner, camera), making it perfect for diversified self-service and interactive signage markets including retail, hospitality, gaming, corporate, healthcare and light industrial applications.

    Application Scenario

    Retail
    • Shop
      Shop
    • Department
      Department
    • Hyper Market
      Hyper
    • Showroom
      Showroom
    Public Service & Hospitality
    • Hotel
      Hotel
    • Restaruant
      Restaruant
    • Airport
      Airport
    • Train
      Train
    Gaming, Commercial, Education
    • Casino
      Casino
    • Meeting
      Meeting
    • Bank
      Bank
    • Library
      Library
    Healthcare
    • Patient Room
      Patient Room
    • Hospital Self
      Hospital Self
    • Nursing
      Nursing
    • Fitness
      Fitness
    Industrial Automation
    • Conterol
      Conterol
    • Production
      Production
    • Warehouse
      Warehouse
    • Automation
      Automation

    • Sleek yet Ruggedized

    • Fanless Design

    • IP65(in front) Dust & Water resistant

    • Ultra Slim Frame

    • Peripheral Options

    Peripheral options


    Magnetic Stripe Card Reader

    PERIF-01
    Magnetic Stripe Card Reader for
    D210 Series


    Specifications
    Interface USB
    Track Configuration Three tracks support
    Media Formats ISO 7811, AAMVA, and other F2F formats
    Read Speed 5 to 65 ips (7.6 to 165 cm/s)
    Magnetic Head Life 1,000,000 times
    OS Support Windows 7/10
    Dimensions 90 x 52 x 35mm
    Operating Temperature 0 ~ 40°C

    Magnetic Stripe + Smart Card 2-in-1 Reader

    PERIF-02
    Magnetic Stripe Card + Smart Card 2-in-1 Reader for D210 Series


    Specifications
    Interface USB
    EMV Card Reader / Reliability 500,000 cycles
    Media Formats MSR: ISO 7811, AAMVA
    EMV: ISO 7816
    MSR Read Speed 3 to 60 inches per second, bidirectional
    Magnetic Head Life 1,000,000 times
    OS Support Windows 7/10
    Dimensions 128 x 54 x 50mm
    Operating Temperature 0 ~ 40°C

    RFID Reader

    PERIF-03
    RFID Reader for D210 Series


    Specifications
    Interface USB
    Frequency 13.56MHz
    NFC R/W Mode NFCIP-1 (ISO/IEC 18092) /
    NFCIP-2 (ISO/IEC21481)
    HF RFID R/W ISO15693, ISO14443A/B, Felica, Mifare, Tag-it,
    ST LRI 1K, ST M24LRXX
    Reading Range 4cm ± 1cm
    OS Support Windows 7/10
    Dimensions 119 x 48 x 40mm
    Operating Temperature 0 ~ 40°C

    5M Camera Module

    PERIF-06
    5M Camera Module for D210 Series


    Specifications
    Interface USB
    Image Resolution 2592 (H) x 1944 (V)
    Focusing Range 10 cm ~ ∞ ; support auto focus
    Frame Rate 640 x 480 @ 30 fps max
    1024 x 768 @ 30 fps max
    1920 x 1080 @ 30 fps max
    1600 x 1200 @ 15 fps max
    Video Format MJPEG
    OS Support Windows 7/10
    Dimensions 119 x 48 x 40mm
    Operating Temperature 0 ~ 40°C

    1D/2D Barcode Reader

    PERIF-07
    1D/2D Barcode Reader for D210 Series


    Specifications
    Interface USB
    Scanning Performance Scan angle: 42.0° (horizontal), 28.0° (vertical)
    Image Resolution: 640 (h) X 400 (v) pixels
    Optical Resolution: 5.0 mil (Code 39)
    6.6 mil (PDF417)
    Typical Reading Distances Standard Symbology Density Min.Dist. Max.Dist.
    Code 39 5.0 mil 2.0 in / 5.1 cm 6.4 in / 16.2 cm
    PDF417 6.6 mil 2.5 in / 6.3 cm 6.3 in / 16.0 cm
    UPC 13 mil 2.0 in / 5.0 cm* 12.5 in / 31.7 cm
    Data Matrix 20 mil 1.5 in / 3.8 cm 13.5 in / 34.3 cm
    QR Code 20 mil 1.5 in / 3.8 cm 11.0 in / 27.9 cm
    *Limited by width of bar code in field of view.
    Symbologies 1D Symbologies: UPC-A; UPC-E; EAN-8/JAN 8;
    EAN-13/JAN 13; GS1 DataBar-14;
    GS1 DataBar Limited; GS1 DataBar Expanded
    2D Symbologies: PDF417; Data Matrix;
    QR Code; MicroQR; Aztec
    Postal Codes: Transmit US Postal Check Digit;
    Transmit UK Postal Check Digit;
    Australia Post Format
    OS Support Windows 7/10
    Dimensions 119 x 48 x 40mm
    Operating Temperature 0 ~ 40°C


    LCD
    Display Type 21.5" TFT-LCD
    Max. Resolution 1920 x 1080
    Max. Colors 16.7M (8 bit/color)
    Luminance 250 cd/m2
    Viewing Angle 178°(H), 178°( V)
    Led Backlight (Hours) 40,000
    TOUCH SCREEN
    Type P-CAP
    Touch Screen True-flat 10 points
    SYSTEM
    PD10RI Processor Intel®Celeron®Processor N3160 (Quad Core, 2M Cache, up to 2.24GHz)
    Chipset Integrated
    System Memory DDR3L 1866MHz, 204-pin SO-DIMM x 2, Max. 8GB (Non-ECC)
    Ethernet Realtek RTL8111G Giga LAN
    I/O Port DC Jack x 1
    USB3.0 x 4
    RJ45 x 1
    VGA x 1
    HDMI x 1
    Line out x 1
    Mic-in x 1
    COM x 2 (RS232 / RS422 / RS485)
    Watchdog Timer 1~255 steps by software program
    Storage Disk Drive SATA 2.5” HDD / SSD bay x 1
    Expansion Slot 1 x PCI Express Full-/Half-Mini Card slot
    1 x PCI Express Half-Mini Card slot
    Stereo Speaker 3W x 2
    OS Support Windows® 7 32/64bit, Windows® 10 64bit, Linux (support by request)
    POWER REQUIREMENT
    Power Input DC 8 ~ 24V
    Power Adapter AC to DC,DC19V / 3.4A, 65W adaptor
    MECHANICAL
    Mounting VESA 100/Stand
    Dimension 520 x 315 x 42 (mm)
    Weight 10kg (22.04 lb)
    ENVIRONMENTAL
    Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
    Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
    Storage Humidity 10% ~ 95% @40°C non-condensing
    Vibration Resistance Operating Random vibration Test 5-500Hz, 0.3Grms@with HDD
    Shock Resistance Operating 50 G peak (3 ms duration)
    EMC CE, FCC Class A
    Front Panel Protection IP6 Compliant

    Ordering Information

    System I/O
    SKU NAME CPU VGA DP HDMI USB 3.0 / 2.0 Line out / Mic-in RS-232 LAN Wifi/BT POWER
    D210-10RI Celeron N3160 1 0 1 4 / 0 1 / 1 2 2 optional DC-in 8~24V(2.5mm/ID, 5.5mm/OD)
